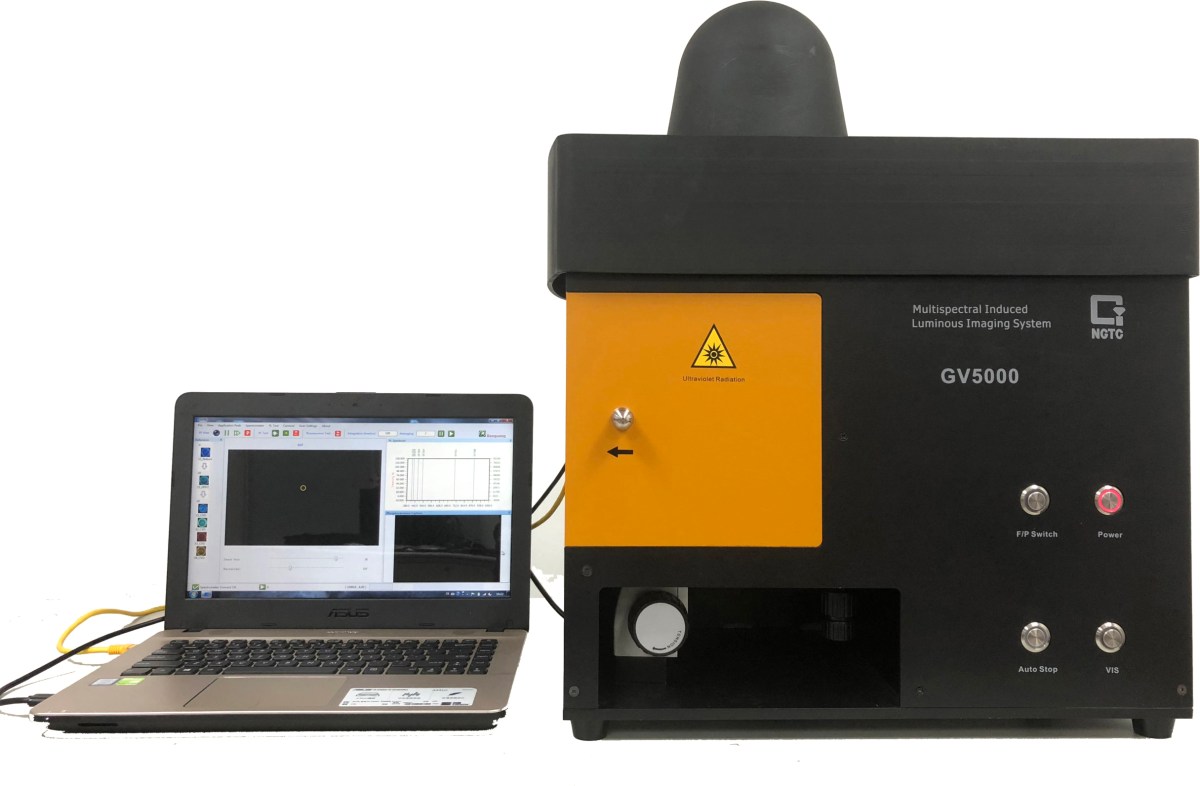

GV5000
GV5000 is a desktop diamond verification instrument for loose and mounted stones designed to separate diamonds, synthetic diamonds and diamond simulants. GV5000 is manually operated and requires an operator to interpret the test results.
GV5000 is a desktop diamond verification instrument for loose and mounted stones designed to separate diamonds, synthetic diamonds and diamond simulants. GV5000 is manually operated and requires an operator to interpret the test results.
Weight: 0.002 ct-20 ct
Size: 0.7 mm-20 mm
Colour: D-N
Shape: All
Diamond Simulants: Yes
Mounted Stones: Yes (not yet ASSURE Tested)
The below results demonstrate the performance of the GV5000 with the ASSURE Core Sample:
Diamond False Positive Rate (optimal rate 0%): 1%
Diamond Referral Rate (optimal rate 0%): N/A
Diamond Accuracy Rate (optimal rate 100%): 98.5%
Speed (stones tested per hour): 296
The ASSURE Core Sample consists of 1,000 loose diamonds, 200 loose synthetic diamonds and 200 loose diamond simulants. The stones are 0.02ct to 0.20ct in D-J colour.
The below results demonstrate the performance of the GV5000 with the ASSURE Smalls Sample:
Diamond False Positive Rate (optimal rate 0%): 0.3%
Diamond Referral Rate (optimal rate 0%): N/A
Diamond Accuracy Rate (optimal rate 100%): 97.5%
Speed (stones tested per hour): 296
The ASSURE Smalls Sample consists of 1,000 loose diamonds, 200 loose synthetic diamonds and 200 loose diamond simulants. The stones are 0.005 ct to 0.02 ct in D-J colour.
Automated Feed: No
Automated Results: No
Automated Dispense: No
Detect or Refer (Synthetic Diamonds): Detect
Detect or Refer (Diamond Simulants): Detect
Multiple Stones at Once: Yes
Training Required: Yes, review user manual
GV5000 captures multiple images and based on visual analysis of the images, and support from a decision tool, the operator concludes the nature of the stones.
The following results can be concluded by the operator based on the data generated by the GV5000:
The ‘Refer’ result could contain potential synthetic diamonds and diamonds. These referrals should be tested further for full verification. GV5000 need to be recalibrated before usage or after it has been moved.
Size: 50 cm (W) x 25 cm (D) x 61 cm (H)
Weight: 17 kg
Price: 43,200 USD (February 2019)
bgyq.cn
sale@bgyq.cn
+86 25 84803536
ASSURE Tested March 2019
ASSURE ID: 637294
