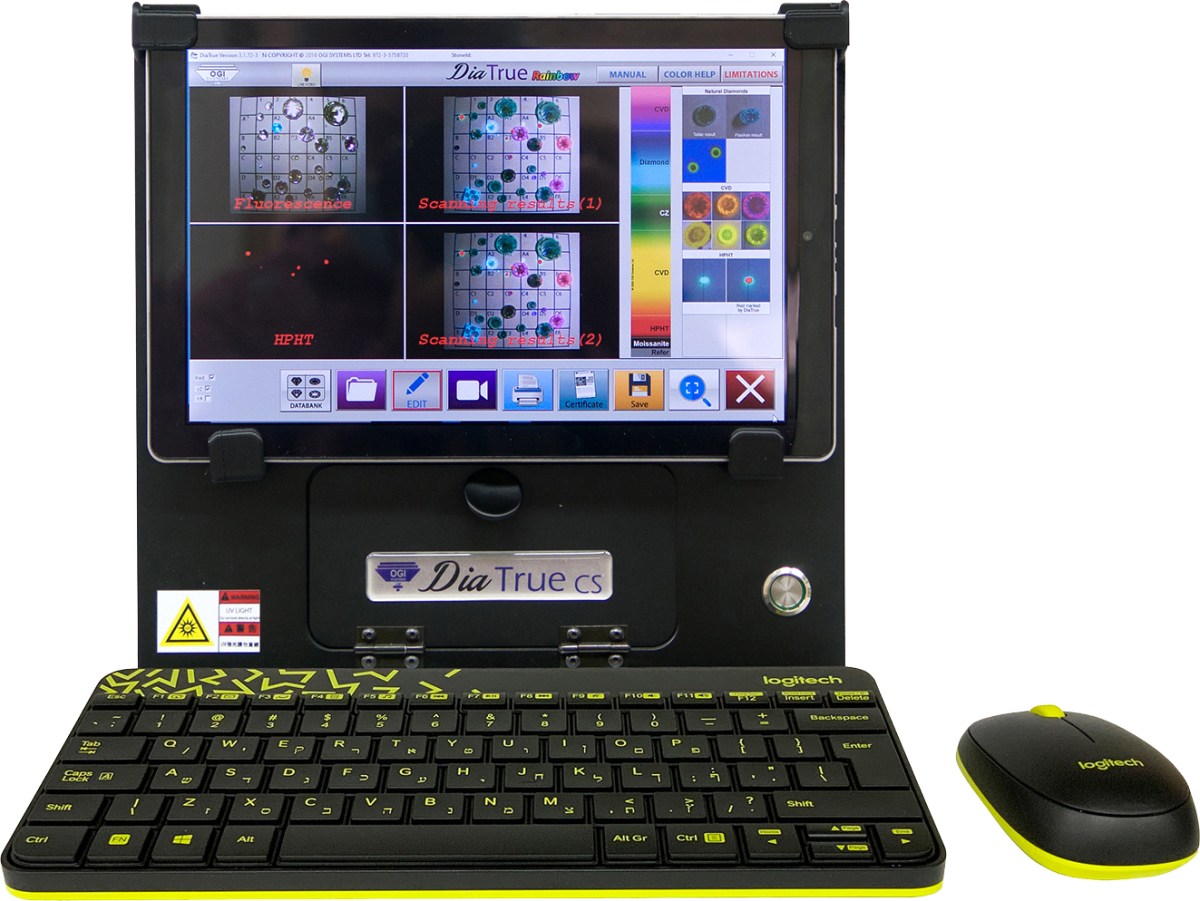

DIATRUE CS
DIATRUE CS is a desktop diamond verification instrument for loose and mounted diamonds. DIATRUE CS is designed to separate natural diamonds from synthetic diamonds. DIATRUE CS is manually operated and gives a semi-automatic test results.
ASSURE Diamond Verification
Stone Testing Capability
Weight:0.005 ct +
Size: 0.5 mm +
Colour: D-J
Shape: All
Diamond Simulants: Yes (not ASSURE Tested)
Mounted Stones: Yes (not yet ASSURE Tested)
Instrument Performance
The below results demonstrate the performance of the DIATRUE CS with the ASSURE Core Sample when tested by a Novice Operator:
Diamond False Positive Rate (optimal rate 0%): 4%
Diamond Referral Rate (optimal rate 0%): 0%
Diamond Accuracy Rate (optimal rate 100%): 93.7%
Speed (stones tested per hour): 201
The ASSURE Core Sample consists of 1,000 loose diamonds, 200 loose synthetic diamonds and 200 loose diamond simulants. The stones are 0.02ct to 0.20ct in D-J colour.
Instrument Capabilities
Automated Feed: No
Automated Results: Semi-automatic
Automated Dispense: No
Detect or Refer (Synthetic Diamonds): Detect
Detect or Refer (Diamond Simulants): Detect
Multiple Stones at Once: Yes
Training Required: No, review user manual
DIATRUE CS measures multiple stones and semi-automatically displays one of the following results:
- Diamond
- Synthetic diamond (separate HPHT and CVD)
- Refer
The ‘Refer’ result could indicate a potential synthetic diamond or natural diamond. DIATRUE CS has a special ‘refer function’. If operator still has a doubt after utilizing the ‘refer function’ OGI recommends further testing by a gemmological laboratory.
Instrument Specifications
Size: 26 cm (W) x 21 (D) x 25 cm (H)
Weight: 6 kg
Price: 5,985 USD (December 2020)
Contact information
www.diatrue.com and www.ogisystems.com
dani@ogisystems.com
+972 544298216
ASSURE Tested November 2020
ASSURE ID: 39784
