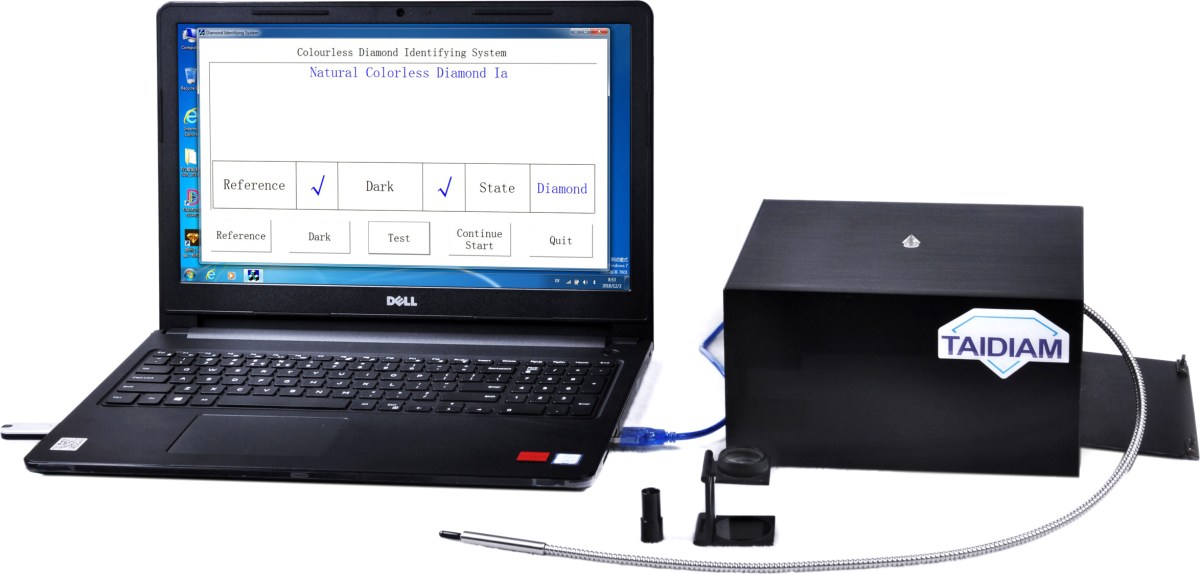

DiamondDect 3

DiamondDect 3

DiamondDect 3 is a portable desktop diamond verification instrument for mounted and loose stones, designed to separate diamonds from synthetic diamonds. DiamondDect 3 is manually operated but gives an automatic test result.

The performance metrics shown below are based on testing done in 2019 using the ASSURE 1.0 test standard and sample sets. The DiamondDect 3 has not been tested under ASSURE 2.0.

Stone Testing Capability

Weight: 0.005 ct-10 ct
Size: 1 mm-10 mm
Colour: D-J
Shape: All
Diamond Simulants: No
Mounted Stones: Yes (not yet ASSURE Tested)

Instrument Performance

The below results demonstrate the performance of the DiamondDect 3 with the ASSURE 1.0 Core Sample:

Diamond False Positive Rate (optimal rate 0%): 0%
Diamond Referral Rate (optimal rate 0%): 0.6%
Diamond Accuracy Rate (optimal rate 100%): 96.4%
Speed (stones tested per hour): 289

The ASSURE 1.0 Core Sample consists of 1,000 loose diamonds, 200 loose synthetic diamonds and 200 loose diamond simulants. The stones are 0.02ct to 0.20ct in D-J colour.

The below results demonstrate the performance of the DiamondDect 3 with the ASSURE 1.0 Smalls Sample:

Diamond False Positive Rate (optimal rate 0%): 1.0%
Diamond Referral Rate (optimal rate 0%): 4%
Diamond Accuracy Rate (optimal rate 100%): 90.6%
Speed (stones tested per hour): 289

The ASSURE 1.0 Smalls Sample consists of 1,000 loose diamonds, 200 loose synthetic diamonds and 200 loose diamond simulants. The stones are 0.005 ct to 0.02 ct in D-J colour.

Instrument Capabilities

Automated Feed: No
Automated Results: Yes
Automated Dispense: No
Detect or Refer (Synthetic Diamonds): Detect
Detect or Refer (Diamond Simulants): N/A
Multiple Stones at Once: No
Training Required: No

The instrument tests individual loose and mounted stones and automatically displays one of the following results:

  1. Natural
  2. CVD Synthetic
  3. Abnormal

The ‘abnormal’ results could contain potential synthetic diamonds and diamonds. These referrals should be tested further for full verification. DiamondDect 3 need to be recalibrated before usage or after it has been moved.

Instrument Specifications

Size: 22 cm (W) x 20 cm (D) x 12 cm (H)
Weight: 3 kg
Price: 5,730 USD (February 2019)

Contact information

en.taidiam.com
yuanjoechihchun@gmail.com
+86 371 66869111



ASSURE Tested March 2019
ASSURE ID: 893267
